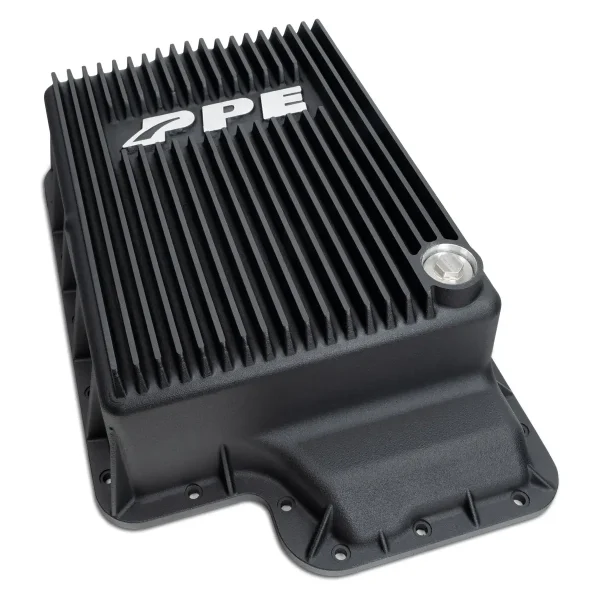

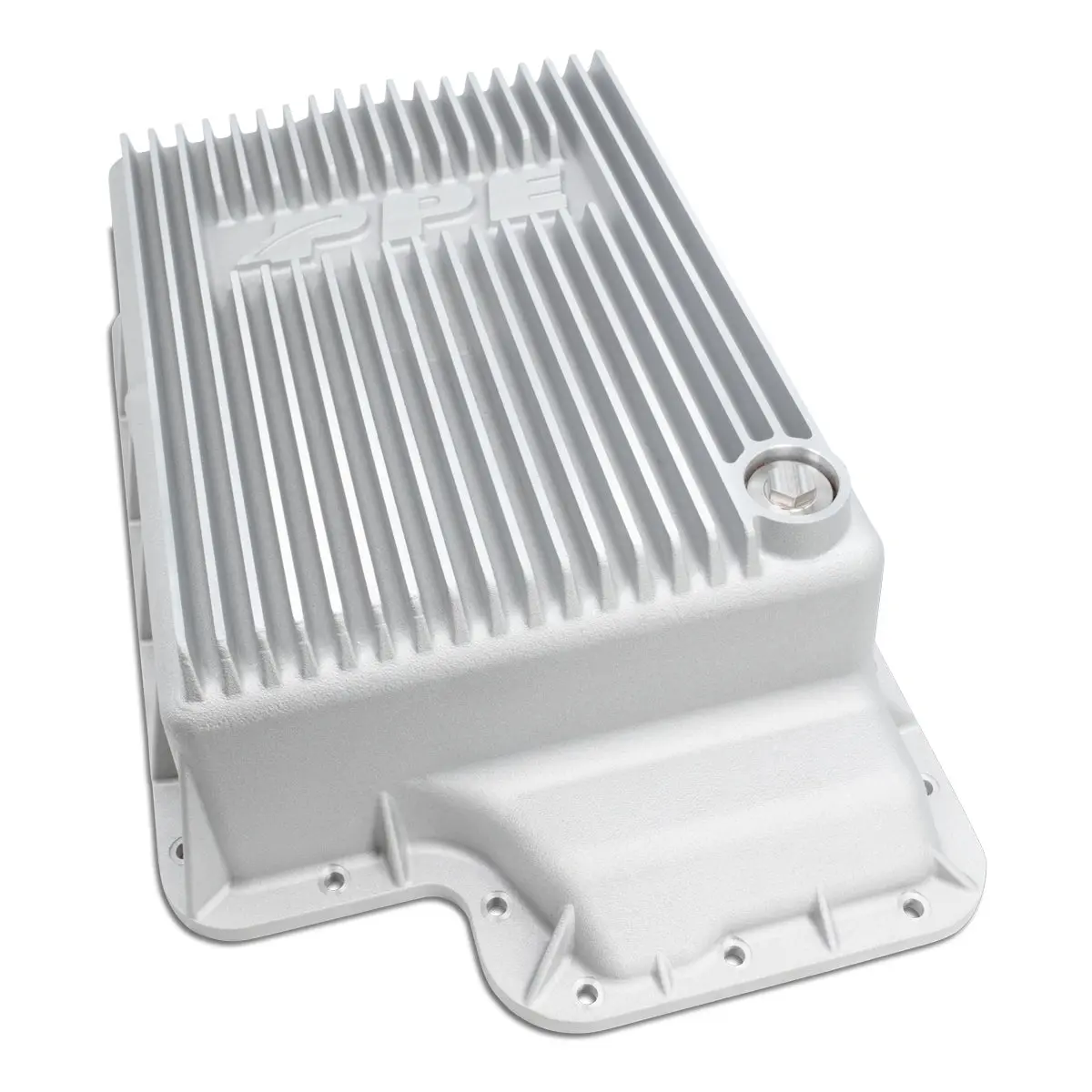

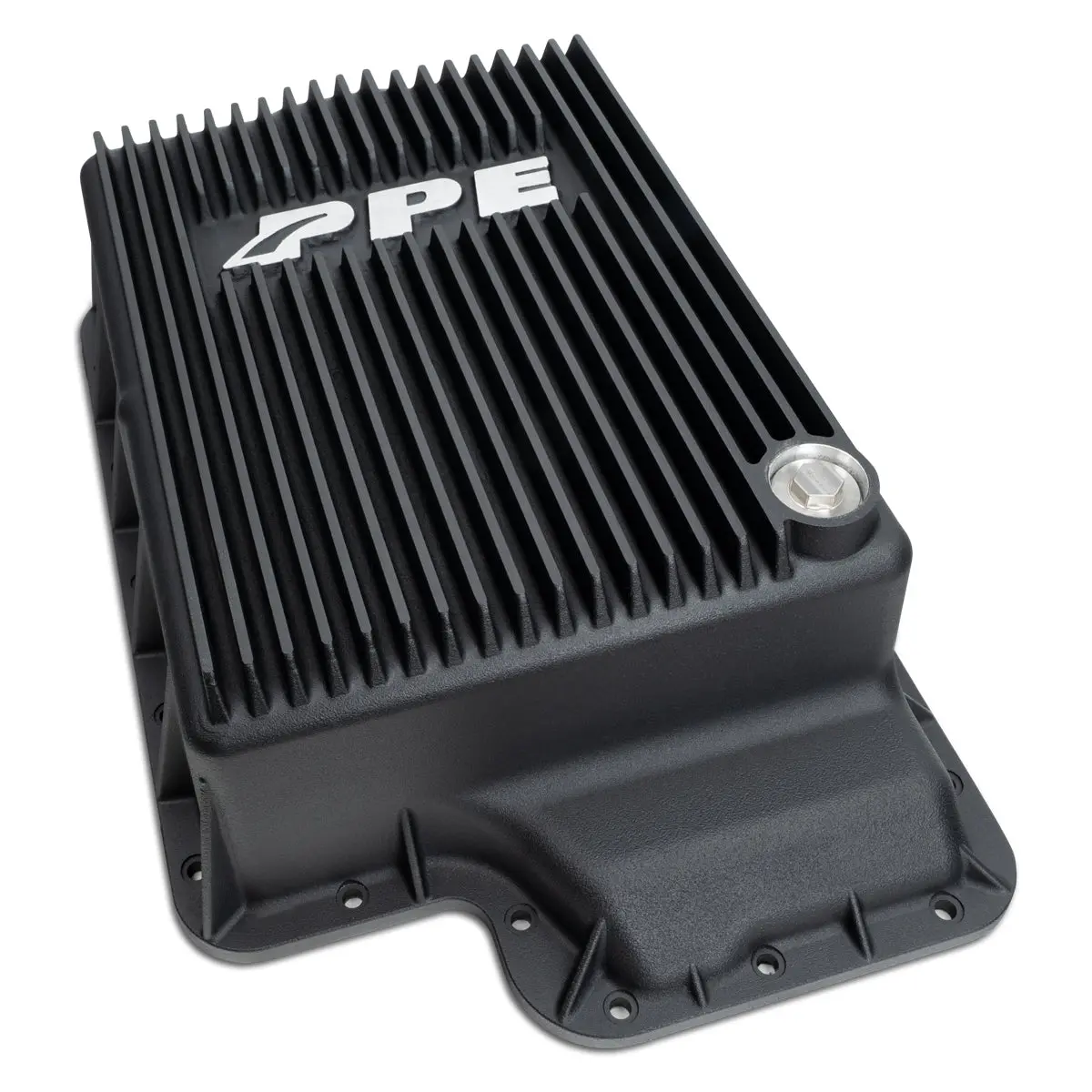

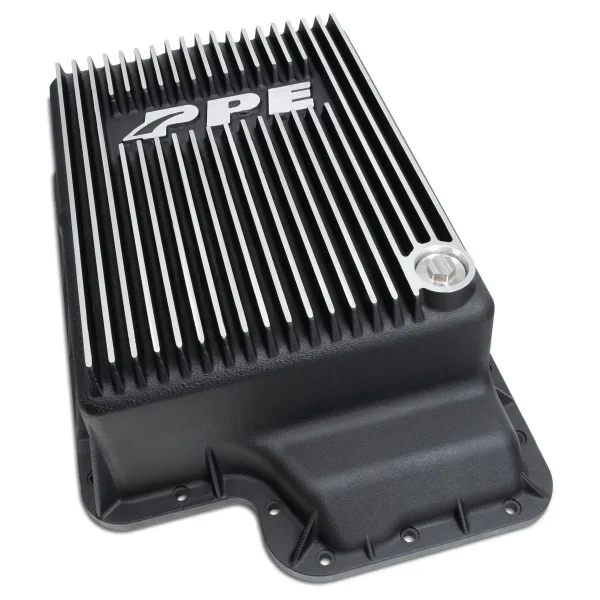

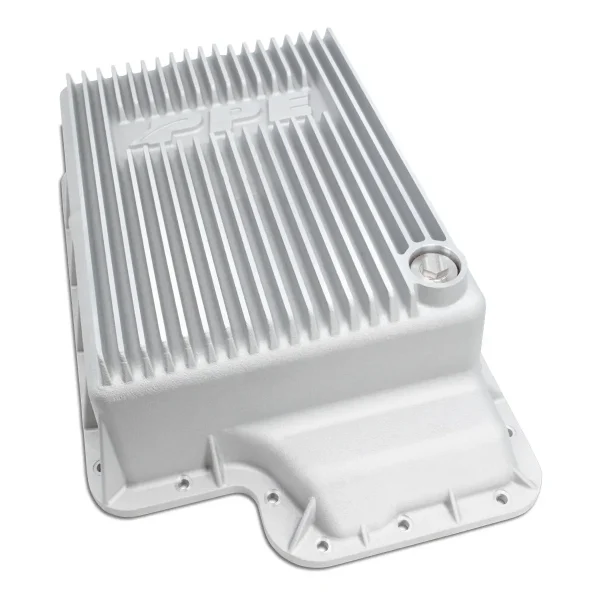

Heavy-Duty Cast Aluminum Transmission Pan for 2003-2010 6.0/6.4L Powerstroke

Heavy-Duty Cast Aluminum Transmission Pan for 2003-2010 6.0/6.4L Powerstroke

Part # 328051000

GTIN: 840171212372

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 6 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/4-inch and 1/8-inch NPT port with pre-installed NPT plug
• Integrated filter supports ensure proper filter placement
• Compatible with OEM gasket
• Deep transmission filter included

About Product

Ford 5R110 Transmission Pan

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 6 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under under pressure. These fins also add strength to the bottom of the pan and enhance resistance.

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form from a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. The built-in filter supports ensure proper filter placement.

Keep your 5 speed transmission running longer, healthier, and cooler with PPE.
